You can define and manage native integrations for sending your end customer Account Bills generated in m3ter outbound into your Xero system:
Important! Notes and Warnings:
  • Note: Xero Integration in Beta Release! Please note that the Xero native integration is currently in beta release:
    • See Feature Release Stages for Beta release definition.
    • If you intend to implement this integration for your m3ter Organization, please contact m3ter Support or your m3ter contact person to discuss.
  • Note: Accounting Products? Many line item types can be mapped to specific Accounting Products to serve your revenue recognition and accounting purposes. Where this is the case, the integration will use the assigned Accounting Products.
  • Note: Reviewing Integration Runs! When you’ve set up an integration with Xero for your Organization in your production environment, you can review details of the integration runs performed for the integration. See Reviewing Integration Run Details.
  • Warning: High-Precision Values! The Xero system does not currently support high-precision values. Values with more than 2 decimal places of precision are rounded leading to inaccurate values. Please bear this in mind when pricing Product Plans and entering a price per unit, and when defining maximum decimal places for Currencies.

​
Creating the Integration

You can quickly set up a native Xero integration from the Configurations page in the Console.
Tip: Reviewing Integration Runs! When you’ve set up an integration with Xero for your Organization in your production environment, you can review details of the integration runs performed for the integration. See Reviewing Integration Run Details.
To define a m3ter - Xero integration:
  1. Select Integrations:
The Integrations page opens with All selected by default.

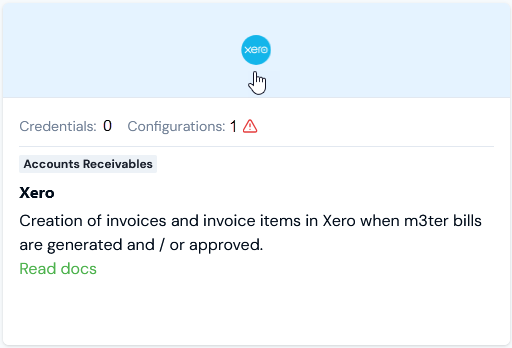

  1. Select Xero:
The Integrations>Xero page opens.

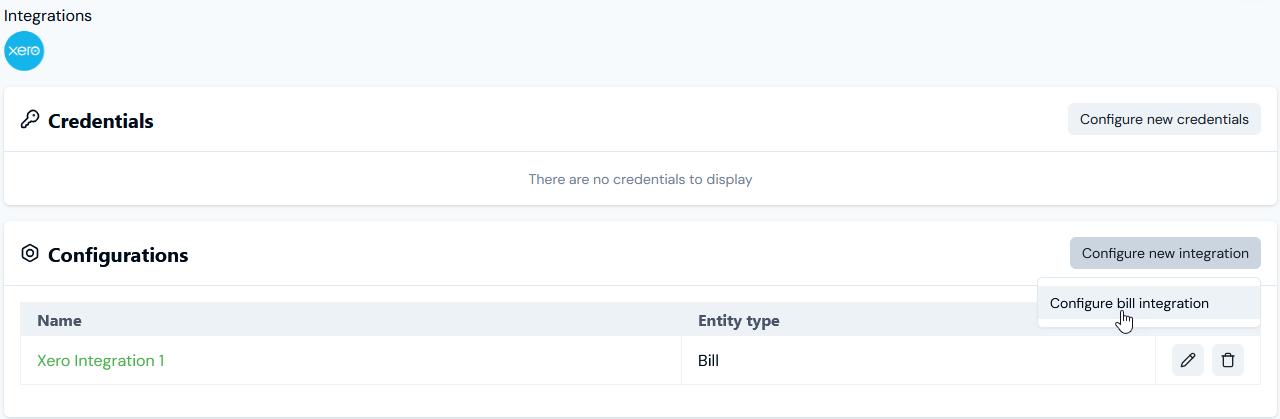

  1. On the Configurations panel, select Configure new integration>Configure bill integration:
The Create page opens and the Entity type - Bill and External system - Xero are shown at the top of the page.
  1. Use the Global configuration panel to:
  • Enter a Name for the Integration. This is required and is useful if you intend to create multiple Integrations for the same External system/Entity type and need to clearly differentiate them.
  • Select the Accounts you want the integration to apply to:
    • Account ids. Select the Accounts you want to include - all selected Accounts are treated as allowed for the integration.
    • Restricted account ids. Select the Accounts you want to exclude - all selected Accounts are treated as disallowed for the integration.
Notes:
  • If you want to include all Accounts in the integration, leave both Accounts ids and Restricted account ids empty.
  • Any filtering by Account ids you define using these settings to control which Accounts the integration runs for will be in addition to any filtering you define using the Account filter option - see the following step for Entity Configuration options.
  • Select Users for Email notifications if disabled:
    • Integration disabled notification users. Select Organization Users you want to receive an Email notification if the integration is automatically disabled.
Notes:
  • An integration is automatically disabled if there have been 20 successive previous error Event responses to earlier attempts to run the integration. See Reviewing and Resolving Integration Events for more details.
  • If you select Organization Users to receive an Email notification when the integration is automatically disabled, their User id will be listed under Configuration Data on the Integration Details page.
  1. Use the Entity configuration panel to configure the m3ter entity you will be synchronizing with for the integration. In the case of an outbound Bill integration, this entity will be the Bill generated for a customer Account in m3ter:
  • Only send bill on approval. Enable this if you only want Bills to be sent when they have been approved. If disabled, the Bill will be sent every time it is regenerated. Default is disabled. Note that:
    • The frequency of Bills sent will depend on the billing frequency defined for the Account Plan attached to the Account - such as daily/weekly/monthly/annually.
    • If an Account has a Prepayment on it and the billing for Prepayment fees is configured to run on a customized schedule, Bills will be sent when scheduled Bills are generated.
    • If a Bill is manually recalculated the updated Bill will be sent.
    • If you enable this, then the integration will not run for all Bill Jobs.
  • Use external mapping account code. Enable this if you want the integration to look in the External Mappings for the Account identifier code, which means you can use an external Id. If this is disabled, the m3ter Account Id is used. Default is disabled.
  • Excluded line item types. Optionally, filter the Bill line item types you send to the destination system. For example, only send charges or credits and exclude all other line item types.
  • Account filter. Optionally, enter an expression that is run on the Account to determine whether or not the integration is run. You can use this setting if you have multiple destinations for sending Bills outbound to your Xero system. For example:
    • customFields != null AND customFields.country = = UK
    • In this example, the integration will run for an Account only if you have created a Custom Field for the Account called country and given the field a value of UK.
Notes:
  • Other Account fields for Account filter expression? You can reference other fields on the Account object in the Account filter expression. For details and another example, see Managing Multiple Third Party Destinations for Integrations.
  • Additional filtering? Any global filtering you define using the settings to include/exclude Accounts for integration runs by Account ids will be in addition to any filtering you define using the Account filter option - see the previous step for Global Configuration.
  • Enforce external mappings for config. Optionally enable this if you want the integration to use only those external mappings specified as being for this configuration.
    • Use this setting if you want to set up multiple integrations for the same external system. You can then create separate external mappings for each integration from the details page of each integration, and these external mappings become Linked external mappings for the specific integration. See Creating Linked External Mappings.
  • Excluded products. Optionally filter the Bill line items you send to the external system. Any line items associated with the selected Products will be be excluded when the integration runs.
    • Note that if line items are mapped to a specific Accounting Products, these will be used for filtering to exclude line items.
  • Excluded aggregations. Optionally filter the Bill line items you send to the external system. Any line items associated with the selected Aggregations will be be excluded when the integration runs.
  1. Use the External system configuration panel to enter the settings specific to the external system:
  • Split usage line items. This setting determines how m3ter will create usage invoice items in Xero. Xero items can be mapped to an individual usage pricing band or to a product:
    • Item per usage band.
    • Item per product.
  • Sort line items by. Optionally, select a property to sort line items by before they are sent out to the external system. Three options:
    • None
    • Subtotal
    • Aggregation ID

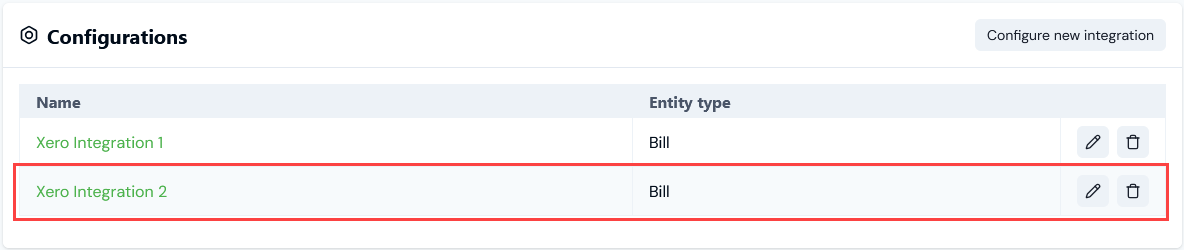

  1. Select Create integration. You are returned to the Integrations>Xero page, where the integration is listed on the Configurations panel:

​
Setting Up Authentication for the Integration

When you’ve created a Xero integration, you can select an Integration Credential you’ve created for authentication allowing the integration to connect with your Xero system. To set up authentication for your m3ter - Xero integration:
  1. Select Integrations. The** Integrations** page opens.
  2. Select Xero. The Integrations>Xero page opens.

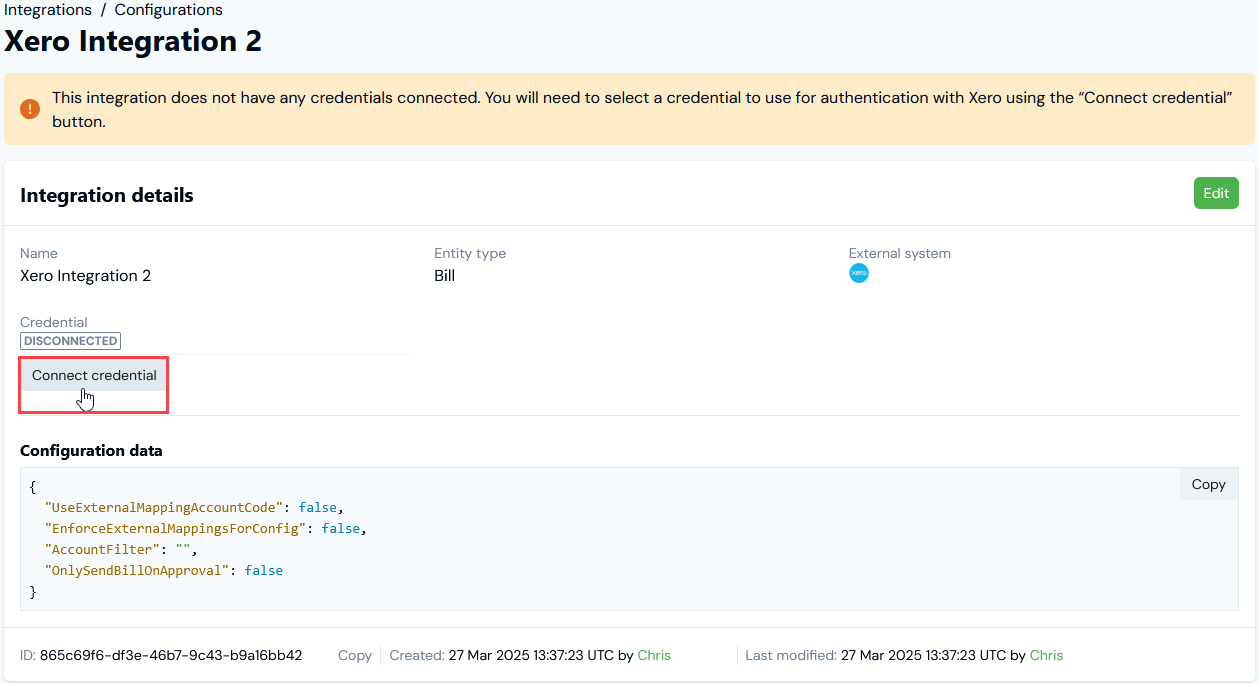

  3. On the Configurations panel, select the Name hotlink text of the Xero integration you want to set up authentication for. The Integration details page opens:
  • Notes:
    • A warning is shown that the integration is not yet connected to your Xero system.
    • The ID of the integration configuration is shown at the bottom of the Details card, and you can copy the ID directly to your clipboard.
  1. Select Connect credential. A Select credential modal appears.
  2. Select a Credential you created earlier and want to use to authenticate the integration with Xero. See Creating Xero Integration Credentials.
  3. Select Confirm. The modal closes and on Integrations details the integration now shows as CONNECTED:
  • The Credential used to connect the integration is shown.
  • If at any time you want to disconnect the integration, select Disconnect credential.
  • If you want to use a different Credential for connecting the integration, select Change credential. The Select credential modal appears and you can select a different Credential.
Tip: Testing your Native Integration Setup? Your Xero integration is now available for use. However, it remains in Beta release and we strongly recommend you test the implementation in your m3ter Sandbox or QA environment before releasing it to your Production environment. See section 7. of our Terms of Service for Beta Usage.
Tip: Integrations API Calls? When you have set up your Xero integration, you can review and manage the integration using a full set of API Calls. See the Integrations section of our API Reference Docs.
